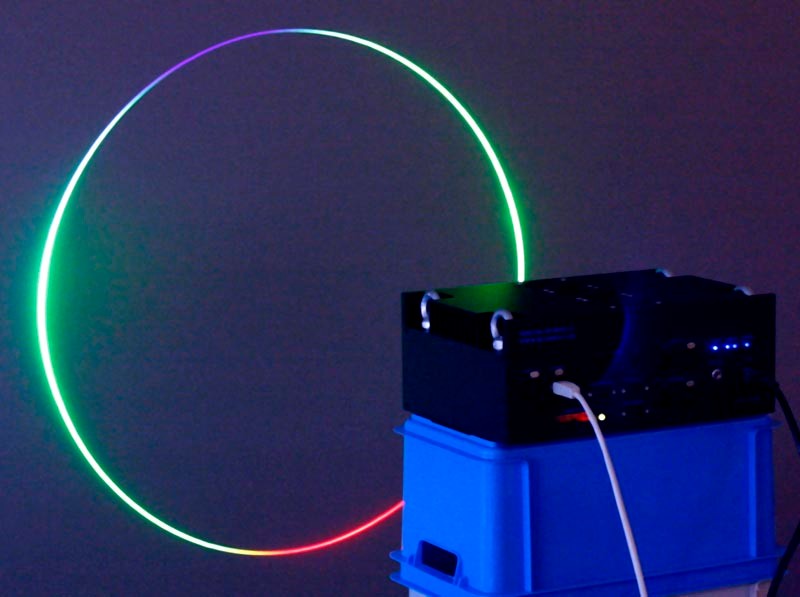

The backpack projector. Main goal of this project was the development of a maximum performance, minimum size white light projector. The footprint of this device is less than DIN A4 (295mm x 205mm) with a height of 115mm.

10/100 MBit Ethernet, DMX512 in/thru, a local DMX512 output and a fully implemented RS232 interface can be used for communication. A universal switching power supply with sequencing allows connection to any mains. A fast condenser battery with charging circuitry provides additional buffering of driver peaks to gain higher scanner acceleration.

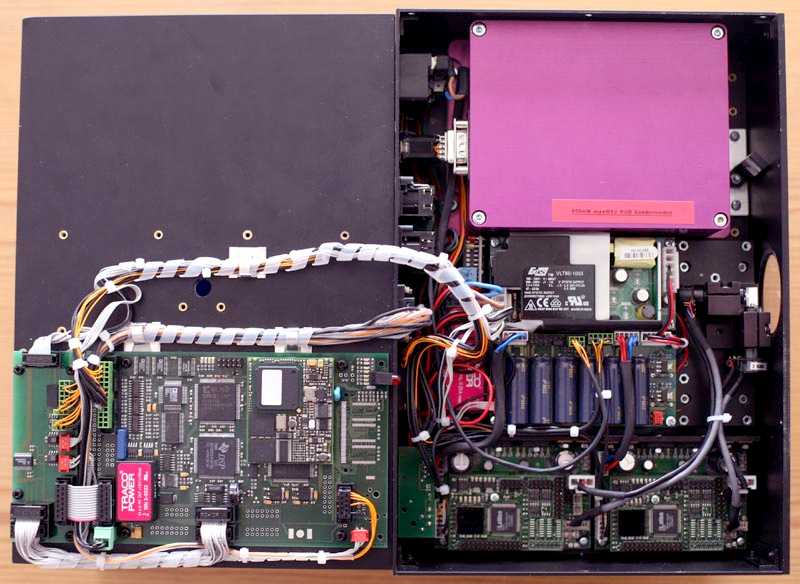

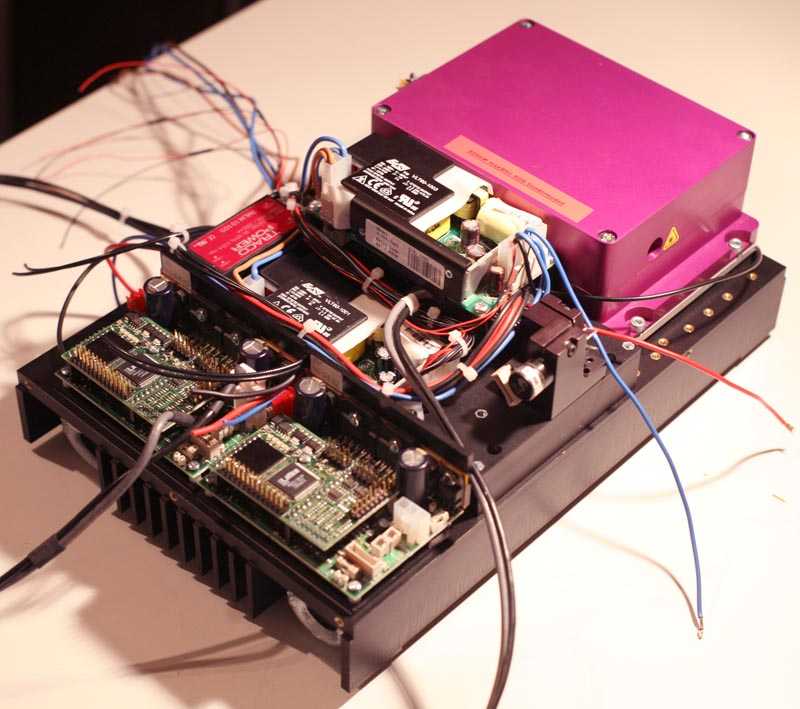

Horizon DPW-600/LT: 600mW white (445nm, 532nm, 650nm), ScanMaster3 projector control board, SmartMove digital drivers, CTI 6210 scanners.
